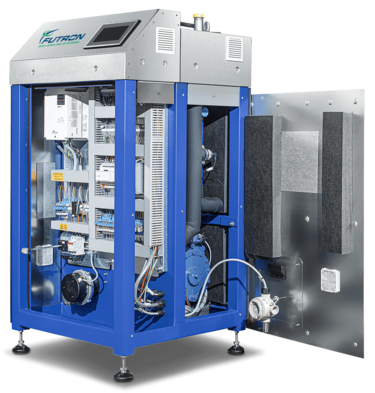

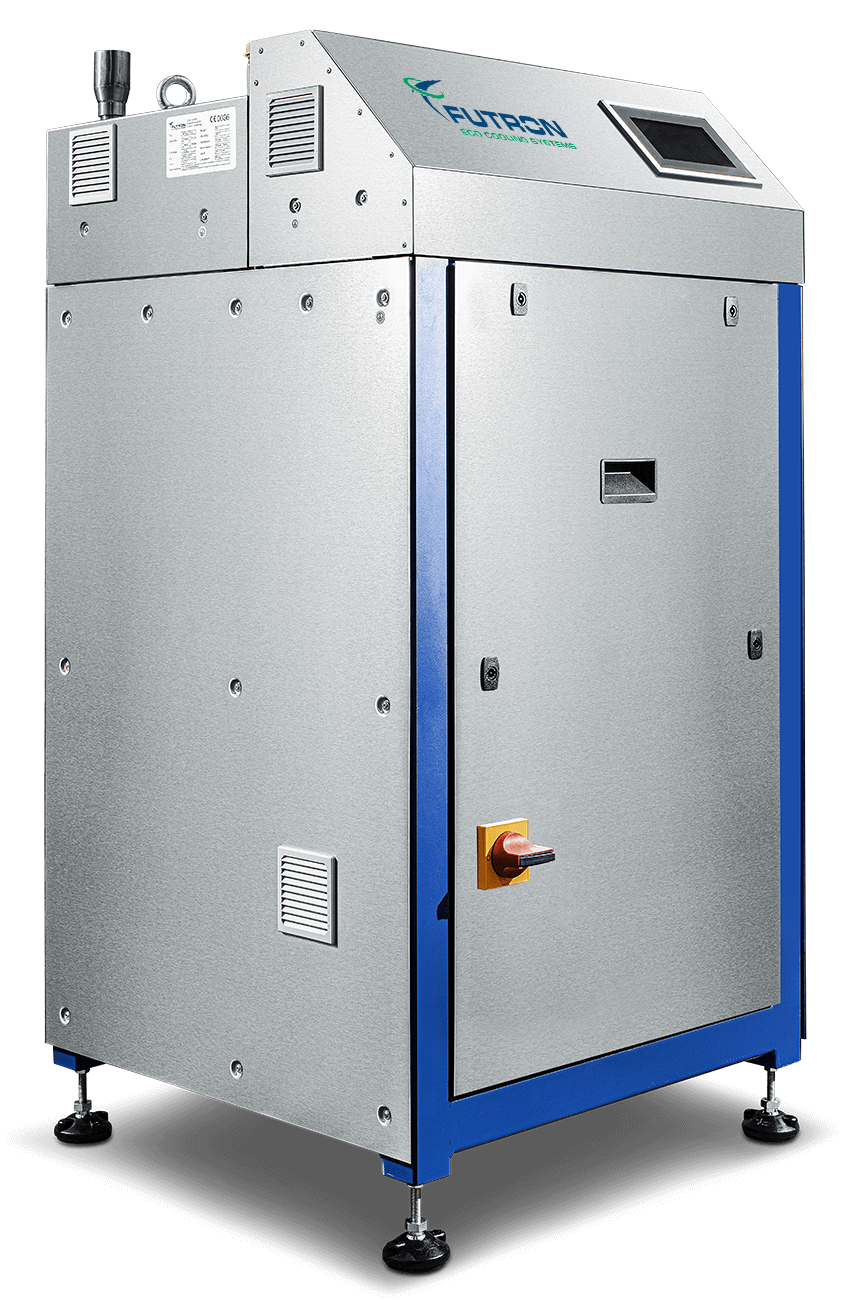

MultiChiller V-series
compact refrigerator with integrated control!
The MultiChiller V with integrated control system is the ideal solution for indoor installation. The V series impresses with its compact integration of refrigeration technology and control electronics (Siemens) in a single housing. All that is required for commissioning is to connect the hot and cold fluid lines and the electrical supply. Heat recovery can be decoupled as an option. The system is also available as an HPR version – for applications with heating and cooling functions using water indoors and brine outdoors. The MultiChiller V-Series HPR offers the advantage of being able to be used for both cooling and heating (reversible) with just one device – without any complicated switching between water and glycol.
product details:
- cooling capacity: 5 kW bis 70 kW
- thermal output: 9 kW bis 90 kW
- dimensions w/d/h: MCVS 750/750/1450 mm
- dimensions w/d/h: MCVL 962/997/1664 mm
- weight: ca. 350-500 kg
use of R290-propane, R1270-propene and R600a-butane
overview advantages:
- integrated control unit
- frequency converter
- service friendly
- ideal solution for indoor installation with a very low refrigerant charge
- safe, maintenance-free 1) & environmentally friendly refrigeration technology
- flange connections
- individual, modular and quick exchange when servicing
- no repeat test by ZÜS
1) excluding safety devices and gas sensors
Compact design, easy assembly and installation
The compact design of the chiller allows the transportation with a lift truck. Low filling quantities allow the installation indoors. Since the chillers are developed as plug’n’play system, they can be easily installed, connected and immediately commissioned.
Individual, modular and exchangeable
Due to the different sizes, the systems can already be adapted to the individual solution with one device only. For higher capacities, several chillers can be interconnected hydraulically without problems. Due to the simple plug-in system, it is also possible to replace the individual components or chillers quickly and uncomplicatedly for service purposes.
Safe, maintenance-free and environmentally friendly plant operation
A TÜV-tested safety concept via gas sensor and ventilation system, as well as the use of natural refrigerants with minimal potential for emissions, ensure sustainable and environmentally friendly operation of the system.
Downloads: MultiChiller V-series
The modular system "MultiChillerKit"
The Futron refrigeration plants are flexible and individually configurable.
