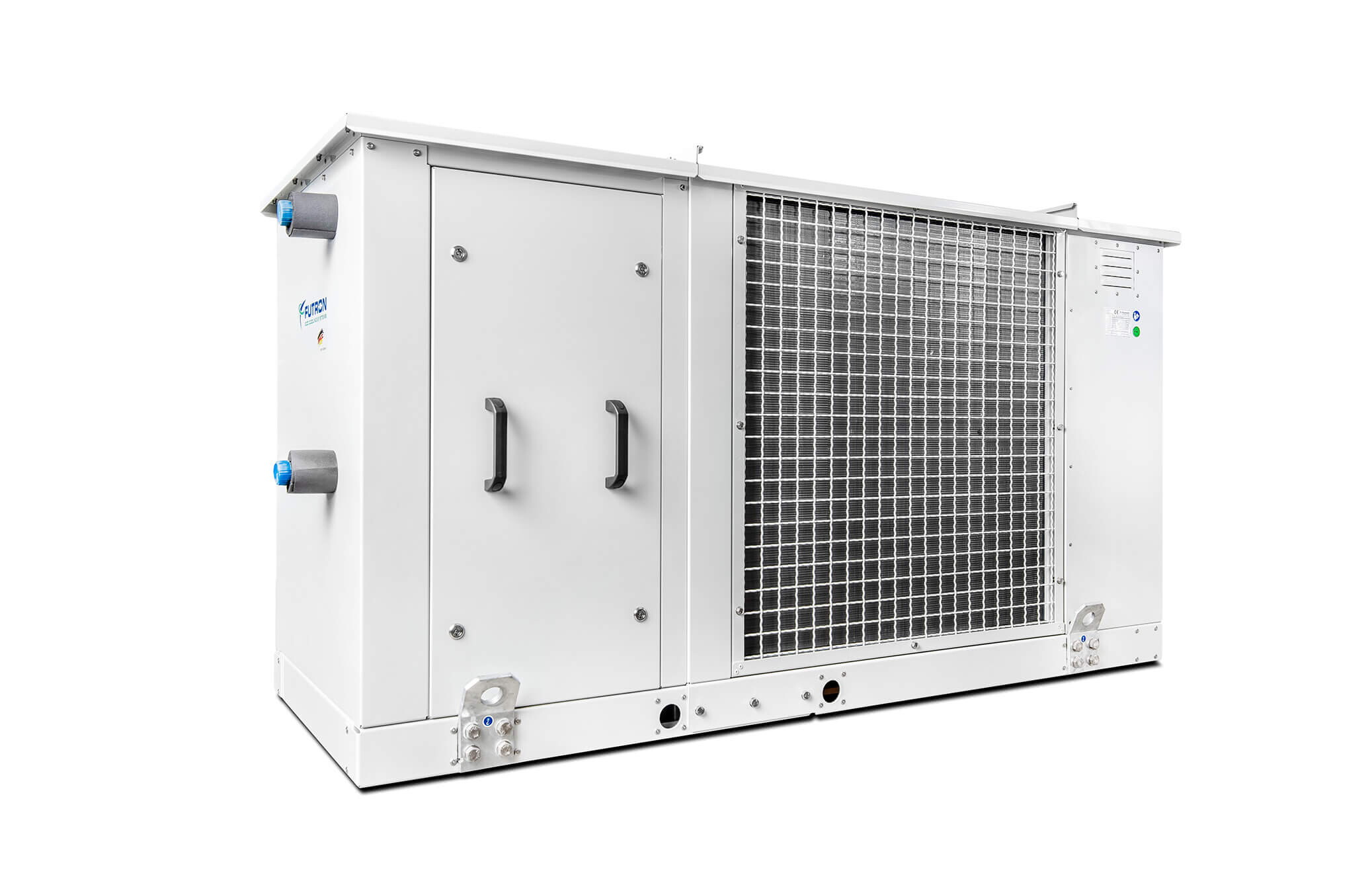

MultiAirChill
a single or dual-circuit refrigeration unit - versatile
The MultiAirChill (MAC) is our classic solution for outdoor installation with direct liquefaction. It has a condenser that is optimized for the filling quantity in order to reduce the refrigerant filling quantity to a low level. The brine chiller is suitable for high ambient temperatures >40°C and is supplied as a ready-to-connect unit. With the MAC, depending on requirements and performance requirements,
you can choose between 2 construction variants. Heat recovery using the heat recovery energy is available as an option. The device is equipped as standard with a two-stage gas sensor and safety suction.
product details:
- cooling capacit single circuit: 20 kW to 50 kW
- cooling capacit dual circuit: 70 kW to 200 kW
- dimensions w/d/h: single circuit 2100-3000/800/1100 mm
- dimensions w/d/h: dual circuit 3900-5700/1200/2000 mm
- weight: 500-2300 kg
overview advantages:
- Powerful solution for outdoor installation
- Soft start for motor current limiter or frequency converter
- Safe system technology with two-stage gas sensor and spatial separation between switchgear and refrigeration technology
- Capacity-optimized condenser
Downloads: MultiAirChill
- Techn. spec. sheet MAC 1.1.22-3 (-8/-4)
- Techn. spec. sheet MAC 1.1.22-3 (12/7)
- Techn. spec. sheet MAC 1.1.67-5 (-8/-4)
- Techn. spec. sheet MAC 1.1.41-5 (12/7)
- Techn. spec. sheet MAC 2.2.33-5 (12/7)
- Techn. spec. sheet MAC 2.2.57-5 (-8/-4)
- Techn. spec. sheet MAC 2.2.67-10 (12/7)
- Techn. spec. sheet MAC 2.2.67-10 (-8/-4)
- Techn. spec. sheet MAC 2.2.100-15 (12/7)
- Techn. spec. sheet MAC 2.2.100-15 (-8/-4)
- Tender MultiAirChill single curcuit
- Tender MultiAirChill dual curcuit
- Futron-broshure
The modular system "MultiChillerKit"
The Futron refrigeration plants are flexible and individually configurable.
